ASTM B760 Polished Molybdenum Rod Diameter 0.5mm to 150mm For Sapphire Growing
Polished molybdenum rod is fine and close product with gray metallic luster. Used for glass industry. It can serve a long life in glass solution at 1300 celsius degrees. Also used in the fields of rare earth industry. Polished molybdenum rod surface presents metallic luster and has no oxidized phenomenon notably
We produce pure molybdenum rod with customized lengths. Surface condition can be chosen as per customers' requirements.
Appearance of Molybdenum Rods:
Cleaned - Surface is chemically cleaned to remove all lubricants and oxides.
Ground - Surface is centerless ground to remove all coating and to achieve precise diameter control
Characteristics of Polished Molybdenum Rods:
Mo content: Mo>=99.95%
Density:>= 10.1g/cm3
Dia: 0.5 - 150mm
The highest temperature: 2400°C.
Moly Rods Applications:
Sintered molybdenum rods used for forging rod or a molybdenum rod material,high temperature resistant support of high temperature furnace.
Forging molybdenum mainly used for electrode of electric glass melting furnace,molybdenum rod etc.
Polished molybdenum rods suitable for processing the ion injection parts;manufacture of electric light and electric vacuum components;heating elements and high temperature structural parts.
Specifications of Polished Moly Rods:
| Diameter(MM) | Length(mm) |
| Φ 2-10 | 2500 |
| Φ 10-30 | 2000 |
| Φ 30-60 | 1500 |
| Φ 60-100 | 1000 |
| Φ 100-200 | 600 |
| Diameter(mm) | Tolerance of Diameter | Length(mm) | Tolerance of length |
| 2-20mm | ±0.03mm | 300-1500 | ±1mm |
| 20-30mm | ±0.03mm | 250-1500 | ± 1mm |
| 30-45mm | ±0.05mm | 200-1500 | ±1mm |
| 45-60mm | ±0.1mm | 250-1300 | ±1mm |
Properties of Pure Molybdenum Materials:
| Grade | | The impurity content is not more than% |
| | Fe | 0.01 |
| | Ni | 0.005 |
| | Al | 0.002 |
| Mo-1 | Si | 0.01 |
| | Mg | 0.002 |
| | C | 0.01 |
| | N | 0.002 |
| | O | 0.008 |

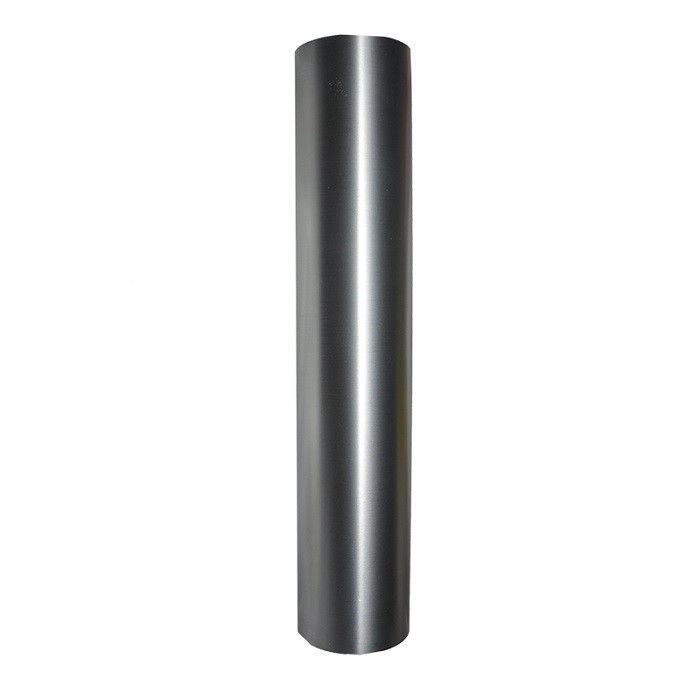

Picture show:
